Ribbon Blender

Product description

The helical mixer is an efficient and widely used industrial mixing equipment. Its prominent feature lies in the unique helical-shaped stirring paddle. This type of equipment, with its powerful mixing capacity, can easily handle highly viscous, easily agglomerated or solid-particle-containing materials. It has a compact overall structure and operates smoothly and reliably. During the mixing process, it can achieve gentle and uniform mixing results. With these characteristics, the helical mixer has become an indispensable key equipment in multiple industries such as food, chemical, and plastic.

Working principle

The core working principle of the helical mixer is based on its unique dual helical stirrer design. Once started, the outer helical belt slowly pushes the materials from both ends of the mixing tank towards the central area; at the same time, the inner helical belt moves in the opposite direction, rapidly pushing the materials from the center to both ends. Thus, the materials form a combined circular motion in both the axial and radial directions within the mixing tank. Under the continuous action of convection, diffusion and shearing, even viscous and easily agglomerated materials can reach an ideal mixed state of macroscopic uniformity and microscopic dispersion within a relatively short period of time. This gentle and efficient forced convection method is its unique advantage in handling difficult materials.

Product features

1. Uniform and powerful mixing: Specifically designed for high-viscosity and prone-to-caking materials, three-dimensional convection ensures efficient and seamless mixing without dead corners.
2. Gentle and controllable action: Based on convection and diffusion, the shear force is gentle, effectively protecting the original form of the materials.
3. Wide application range: By adjusting parameters, it can be adapted to various material systems ranging from powders to paste-like viscous materials.
4. Stable and durable operation: The structure is sturdy, the transmission is smooth, suitable for heavy loads and continuous production, and maintenance is simple.
5. Clean and thorough discharging: The U-shaped tank body and fully open design facilitate the rapid and complete discharge of materials, reducing residues.

Model	Volume(L)	Motor power (kw)	Spindle speed(r/min)	Primary mixing (kg) M ³	L*W*H(mm)	Weight (kg)
WLDH-0.3	300	3	41	240	2300*680*1060	750
WLDH-0.5	500	5.5	41	400	2900*780*1240	1000
WLDH-1	1000	11	33	800	3200*1000*1400	1800
WLDH-2	2000	15	33	1600	3860*1200*1650	2200
WLDH-3	3000	18.5	33	2400	4320*1300*1900	3200
WLDH-4	4000	22	28	3200	4600*1400*2000	4000
WLDH-5	5000	37	28	4000	4850*1500*2020	4650
WLDH-6	6000	37	22	4800	5400*1560*2200	6280
WLDH-8	8000	45	22	6400	5100*1720*2420	8500
WLDH-10	10000	55	19	8000	5610*1750*2360	9300
WLDH-15	15000	90	17	12000	5820*2000*3160	11000
WLDH-20	20000	110	11	16000	6060*2630*3160	13500

Product details

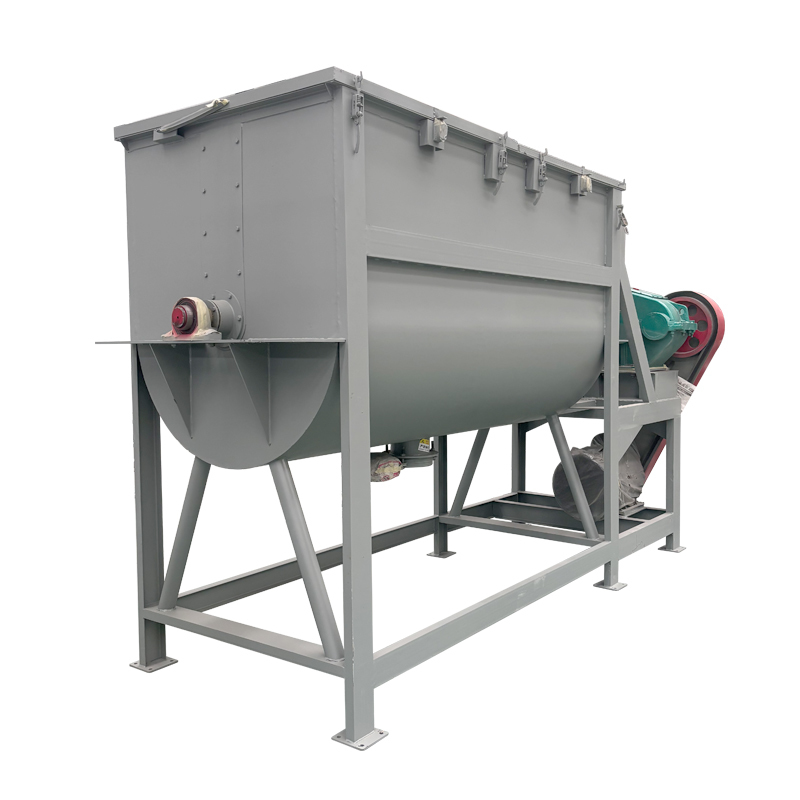

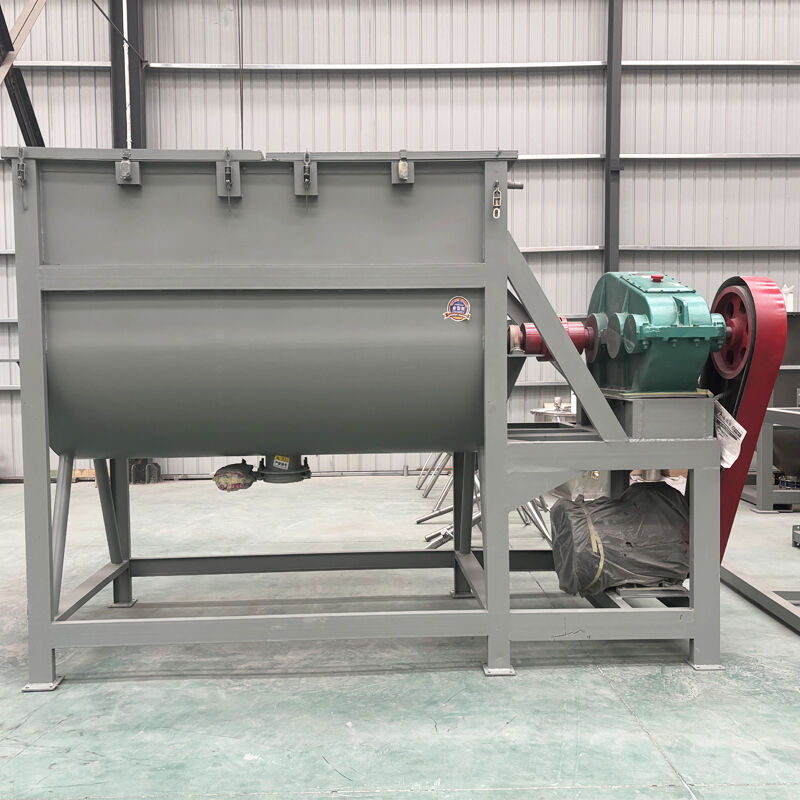

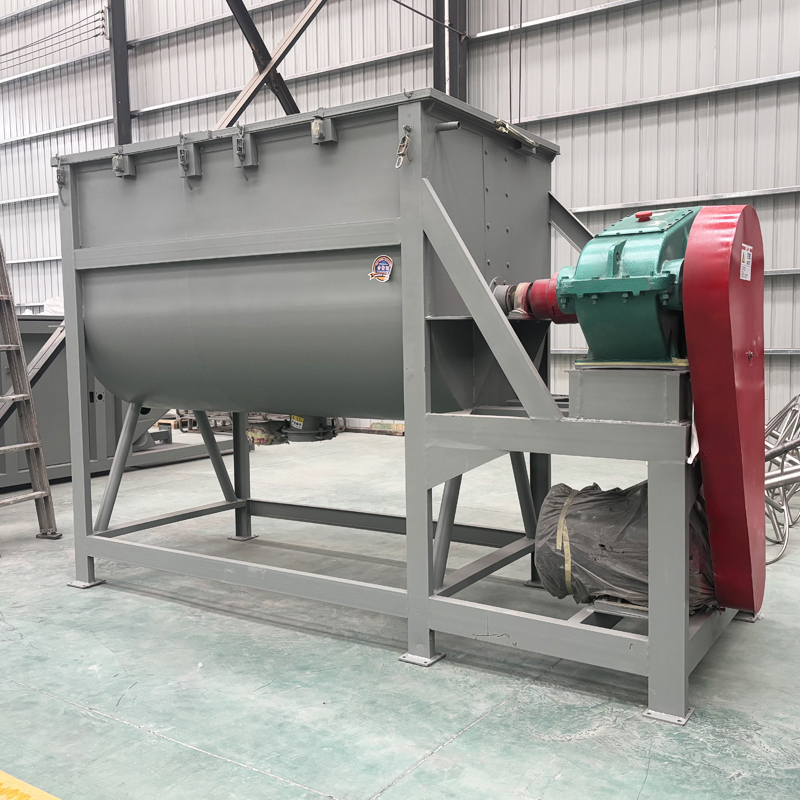

Product shows

Product application

Mixing with a screw ribbon mixer not only takes a short time but also has good mixing results, and it is a highly practical mixing device. is usually used for mixing powders with powders or powders with liquids, so it is widely used in the pharmaceutical, food, pesticide, dye, chemical and plastic industries.
