Ribbon Blender

Product description

The helical mixer is an efficient industrial mixing equipment, with its U-shaped body and unique reverse helical stirring structure as its core. It can quickly and evenly mix various materials, especially excelling in handling viscous, materials with large density differences, or powders and particles that require gentle treatment. This equipment has the features of large loading capacity, clean discharge, stable operation, good sealing performance, and easy expansion for heating or cooling. Due to its wide applicability and simple operation and maintenance, the helical mixer has become an indispensable mixing solution in the chemical and food industries.

Working principle

The working principle of the spiral mixer is based on the reverse movement of its core double spiral. After the equipment is started, the outer spiral pushes the materials from both ends of the mixing chamber towards the center, while the inner spiral moves the materials from the center to both ends. These two macroscopic material flows moving in opposite directions strongly converge at the center, generating intense convective mixing. At the same time, under the shearing and driving force of the spiral blade, the materials also continuously penetrate and diffuse radially and axially. This synergy of convection and diffusion enables the materials to achieve highly uniform mixing within a short period of time, and the entire process causes minimal damage to the material's structure.

Product features

1.The mixing effect is excellent.
Thanks to the unique reverse spiral design, it can quickly achieve uniform three-dimensional mixing of the materials.
2. Wide application range
It is particularly suitable for various materials with high viscosity, easy agglomeration, significant density differences, and those requiring gentle processing.
3. Efficient processing capability
The design of the U-shaped container enables a high loading rate and a large single processing volume, significantly enhancing production efficiency.
4. Convenient operation and maintenance
The equipment operates smoothly with low energy consumption, and its structure is sturdy and easy to clean, resulting in low maintenance costs.
5. Flexible function expansion
It can be easily adapted to various process modules such as heating and cooling, liquid spraying, and vacuum, meeting the requirements of complex production.

Model	Volume(L)	Motor power (kw)	Spindle speed(r/min)	Primary mixing (kg) M ³	L*W*H(mm)	Weight (kg)
WLDH-0.3	300	3	41	240	2300*680*1060	750
WLDH-0.5	500	5.5	41	400	2900*780*1240	1000
WLDH-1	1000	11	33	800	3200*1000*1400	1800
WLDH-2	2000	15	33	1600	3860*1200*1650	2200
WLDH-3	3000	18.5	33	2400	4320*1300*1900	3200
WLDH-4	4000	22	28	3200	4600*1400*2000	4000
WLDH-5	5000	37	28	4000	4850*1500*2020	4650
WLDH-6	6000	37	22	4800	5400*1560*2200	6280
WLDH-8	8000	45	22	6400	5100*1720*2420	8500
WLDH-10	10000	55	19	8000	5610*1750*2360	9300
WLDH-15	15000	90	17	12000	5820*2000*3160	11000
WLDH-20	20000	110	11	16000	6060*2630*3160	13500

Product details

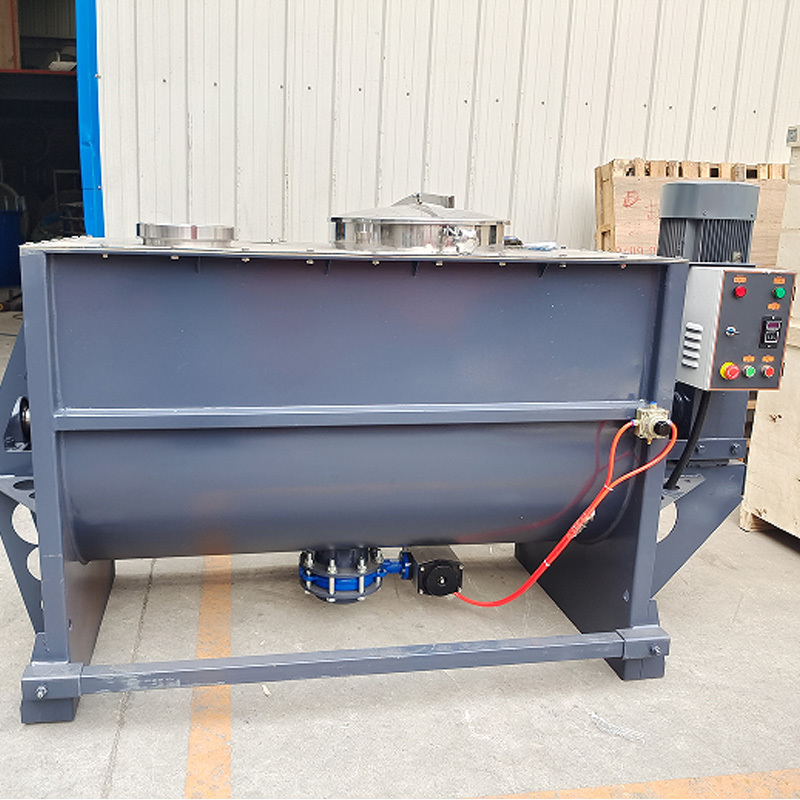

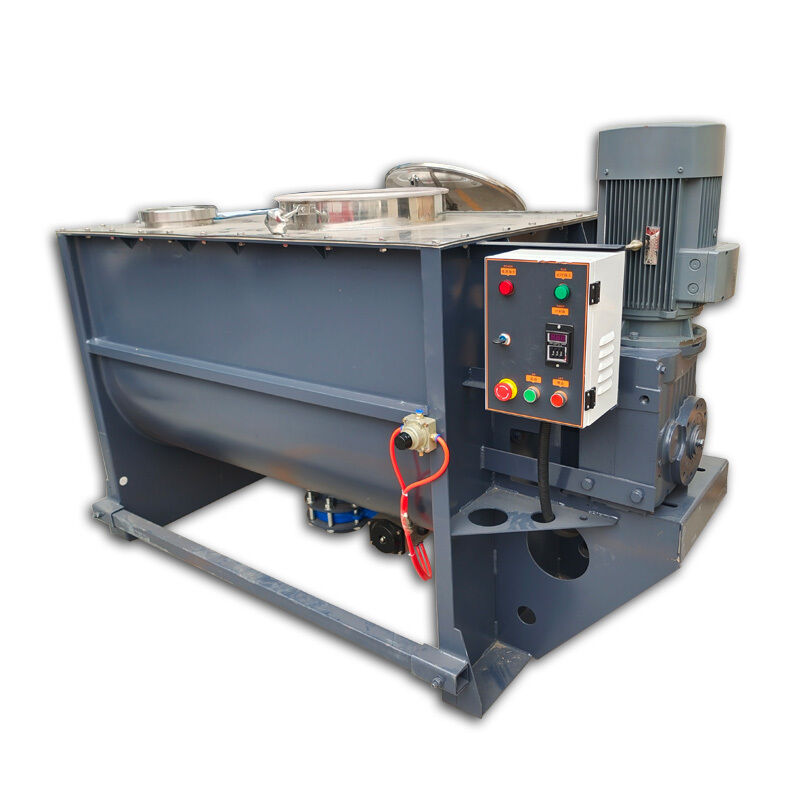

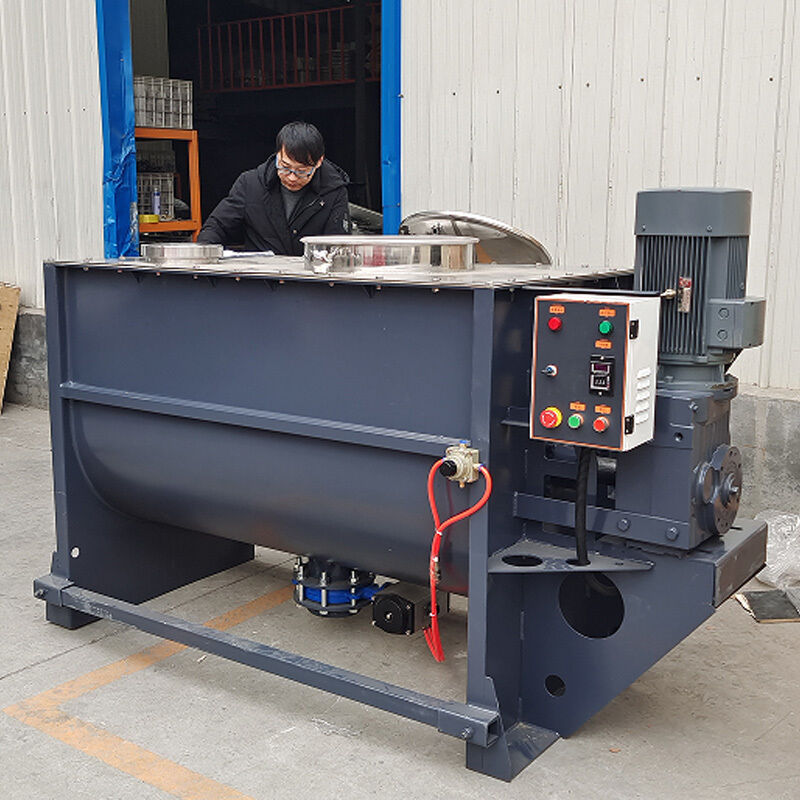

Product shows

Product application

Mixing with a screw ribbon mixer not only takes a short time but also has good mixing results, and it is a highly practical mixing device. is usually used for mixing powders with powders or powders with liquids, so it is widely used in the pharmaceutical, food, pesticide, dye, chemical and plastic industries.
