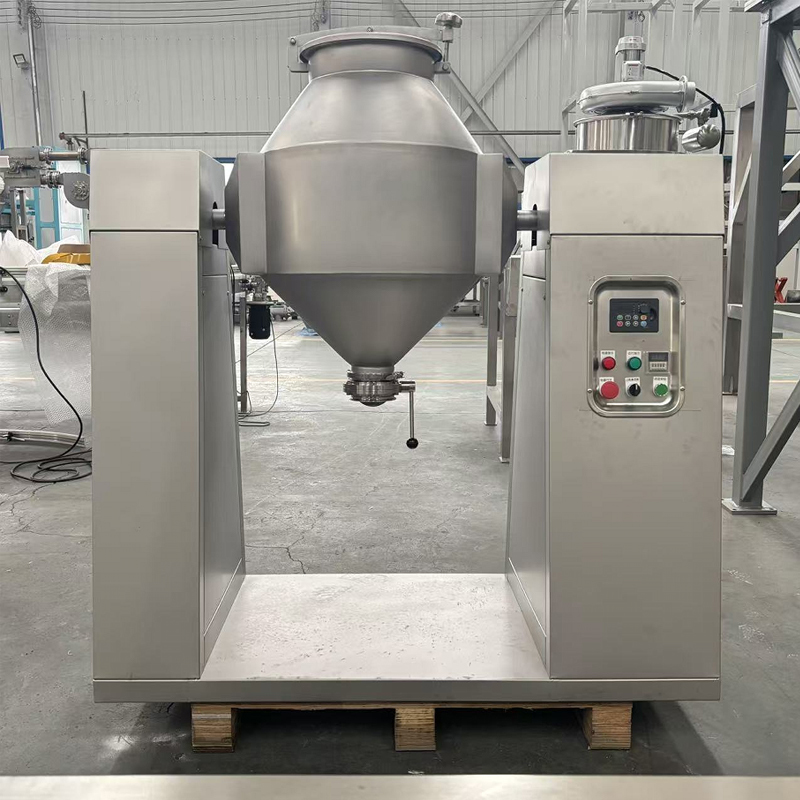

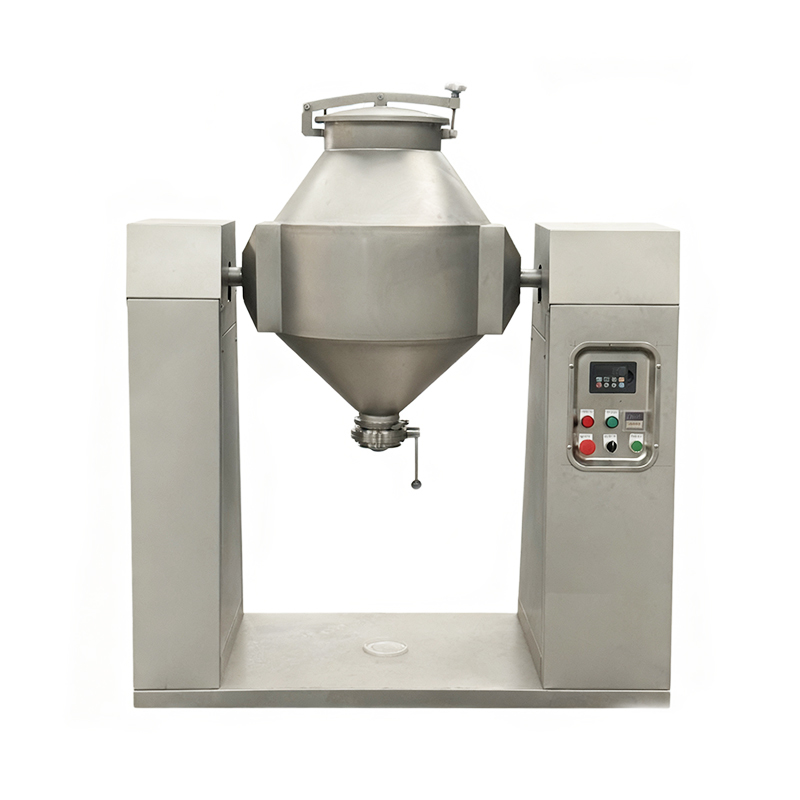

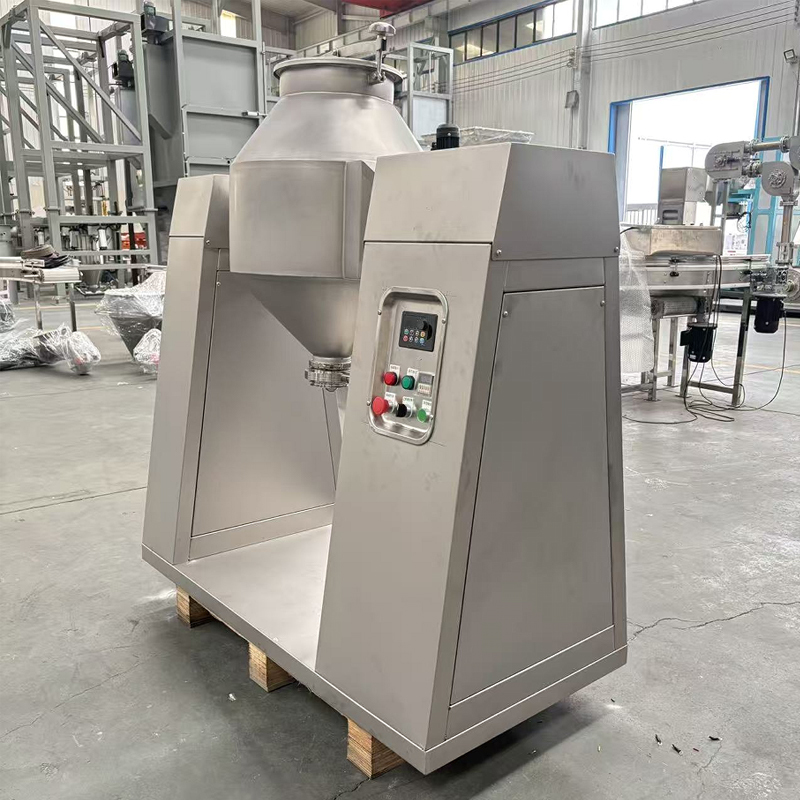

Double Cone Mixer

Product description

The double-cone mixer is an efficient and versatile equipment for mixing powder and granular materials. Its core structure consists of two symmetrically connected conical cylinders, forming a double-cone shape as a whole. It is usually installed on a rotatable support. Thanks to its unique geometric design, this equipment can achieve three-dimensional motion of the materials at a low rotational speed, ensuring extremely high mixing uniformity. It also features no dead corners, less residue, and easy cleaning. It is widely used in industries such as chemical, food, and feed for the uniform mixing of dry powder, granules, or materials with a small amount of liquid.

Working principle

The working principle of the double-cone mixer is based on the mechanisms of gravity diffusion and convection mixing: When the driving device drives the double-cone cylinder to rotate around the horizontal axis, the materials in the cylinder are continuously sliding down along the cone walls under the influence of gravity and generate complex axial and radial movements; as the cylinder continues to rotate, the materials repeatedly separate, converge and exchange positions between the two cones, forming a strong three-dimensional立体 circulation flow. This continuous shearing, diffusion and convection action quickly eliminates the concentration differences between the components, thereby achieving highly uniform mixing of the materials in a short period of time.

Product characteristics

High uniformity of mixture: Three-dimensional movement ensures rapid and efficient mixing with excellent uniformity.
No dead corners, less residue: The inner wall is smooth without stirring components, the discharge is thorough, and cross-contamination is prevented.
Strong adaptability to materials: Suitable for dry powder, granules and small amounts of liquid mixing, with a gentle process and low fragmentation rate.
Convenient operation and cleaning: Simple structure, quick material intake and discharge, and easy cleaning of the inner surface.
Energy-saving and stable operation: Low rotational speed operation, low noise, low wear, and low energy consumption.

Application

1. Pharmaceutical industry: The raw materials and auxiliary materials used for mixing powders and granules are the core equipment for the production of solid preparations.1. Pharmaceutical industry: The raw materials and auxiliary materials used for mixing powders and granules are the core equipment for the production of solid preparations.
2. Food industry: It is used for mixing seasonings, additives, milk powder, coffee powder, spices, etc.
3. Chemical industry: It is used for mixing pigments, dyes, resin powders, catalysts and other chemical raw materials.
4. Other fields: It is also widely applied in industries such as pesticides, feed, metallurgical powders, and ceramic powder materials, where uniform mixing is required in the production process.

Product parameter

Production Line Diagram

1. Worker release the bag on the dust-free bag dumping station, as there is a dust collector in the machine, so dust fly
2. The sieve machine will remove the lump or big-size material, only allowing smaller size material to flow into the conveying system
3. The vacuum conveyor transports the material to a buffer hopper or a storage hopper, waiting for the mix
4. When you need to mix, the vacuum feeder starts work, transport the material from the hopper to the double cone mixer
5. After mix, the mixed material will be transported to a packing machine, packed according to the set weight, and then sealed the bag

In the system, the entire conveying process is sealed to ensure hygiene and safety.
