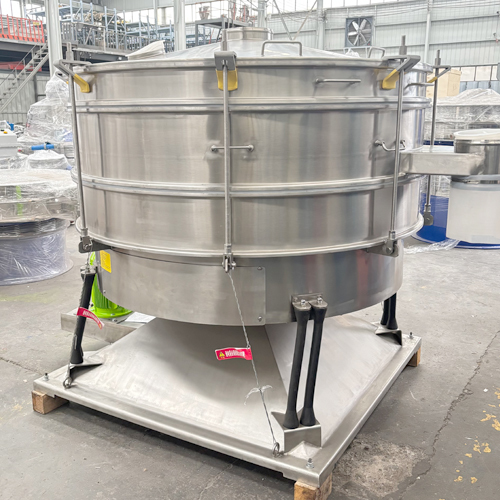

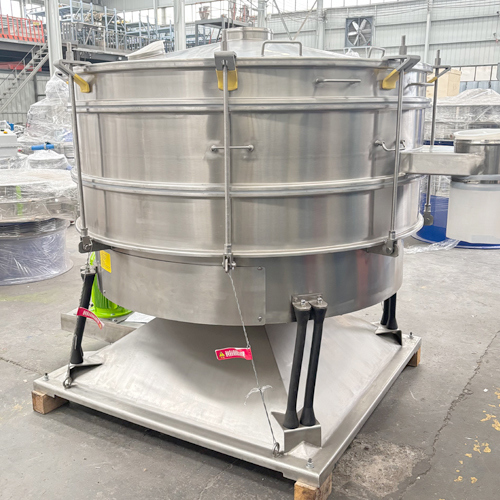

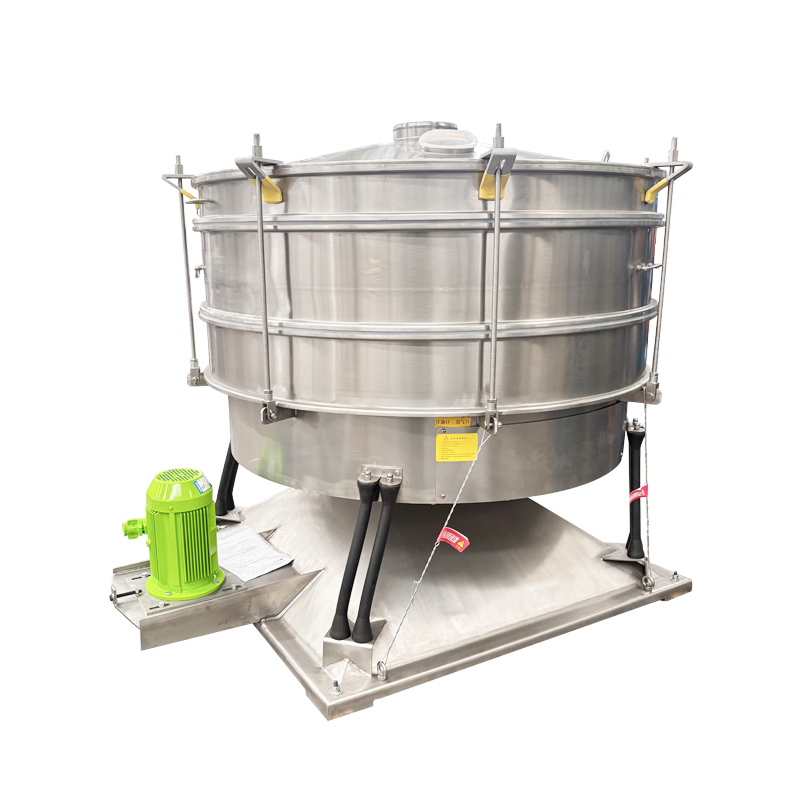

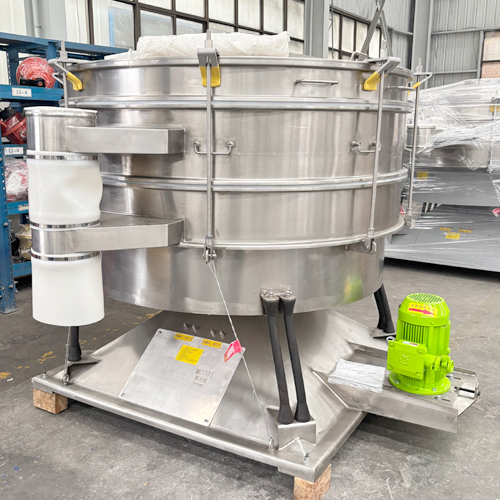

High-yield stainless steel food-grade tumbler sieve grain separator

Product Introduction

The swing sieve is an efficient and precise screening equipment. It operates based on the principle of artificial swinging and is driven by an eccentric shaft to generate three-dimensional swinging motion, which can simulate the reciprocating and bouncing actions of manual screening.
It has high screening accuracy and large processing capacity. It can be adapted to multi-layer screen meshes and can separate materials of various particle sizes. Moreover, it causes little wear to the materials and is suitable for the fine screening needs in industries such as food, medicine, and chemicals. Compared with traditional vibrating screens, it has more obvious advantages in handling materials prone to clogging the screen.

Working principle

Power drive: The eccentric shaft rotates under the drive of the motor, converting the circular motion into the inclined swinging motion of the screen body, providing the core motion source for screening;
Three-dimensional motion: Under the action of the power, the screen body simultaneously generates combined motions of forward and backward reciprocation, left and right swaying, and slight up and down jolting, allowing the materials to spread forward in a spiral pattern on the screen surface, avoiding local accumulation;
Classification and separation: During the movement, particles smaller than the sieve holes quickly pass through the sieve net and become the screened material, while particles larger than the sieve holes continue to advance along the screen surface and become the screened material. If multiple layers of sieves are configured, it can also simultaneously achieve the separation of multiple particle size grades.

Product Features

1. Precise screening: The three-dimensional oscillation enables the materials to fully contact the screen mesh, meeting the requirements for fine material screening;
2. No mesh blockage, efficient processing: The materials move in a spiral manner, with high utilization rate of the screen surface, and the problem of mesh blockage caused by cohesive and sticky materials is improved;
3. Protecting materials: The gentle movement reduces collisions, protecting the integrity of crystals and fragile materials;
4. Multi-layer efficiency: Supports 1-5 layers of screen mesh, allowing multiple particle size grades to be separated with a single feed;
5. Low noise and durable: Low operating noise, small mechanical wear, and longer service life;
6. Wide application: Suitable for fine screening scenarios in multiple fields such as food, chemical, and mining.

Chemicals, food and spices, plastics, mining, pharmaceuticals, woodworking and plywood, metallurgy, rubber, feed, fertilizer, sugar and industries, etc.

Packing and shipping

1. Package:

Choose a wooden box with sturdy packaging materials to provide adequate protection and support.

2. Logo and documentation:

Clearly mark the name, model, weight, size and quantity of the equipment on the packaging.
3. Prepare necessary shipping documents and certificates, such as invoices, packing lists, transportation contracts and insurance certificates, etc.
4. Shipping method:

Choose the appropriate shipping method, such as sea, air or land, making your choice based on destination and time requirements.

Why choose us

About us





FAQ

Q1: What particle size ranges is the Electric Tumbler Sieve suitable for?
A: Electric Tumbler Sieve is suitable for a wide range of particle sizes, from micron-level fine particles to millimeter-level coarse particles, and can be screened and classified.

Q2: What is the screening accuracy of the electric swing screen?
A: The screening accuracy of the electric swing screen depends on factors such as screen hole size, material properties and screening parameters. Normally, it can achieve high screening accuracy and can meet the screening requirements of different particle sizes.
Q3: What are the advantages of Electric Tumbler Sieve compared with other types of screening equipment?
A: Compared with other types of screening equipment, Electric Tumbler Sieves have higher screening accuracy, screening efficiency and flexibility.
