High Frequency Screen

Product Description

The high-frequency screen is an efficient screening equipment. Its core working principle is high-frequency vibration. Through high-frequency and low-amplitude vibration, the materials can be rapidly stratified and screened on the screen surface. It is commonly used for the classification, desliming or dehydration of fine-grained materials.
Its vibrating screen has a high vibration frequency and its screening efficiency is much higher than that of ordinary vibrating screens. It can effectively handle materials as fine as 0.074mm. Moreover, it has a compact structure and occupies a small area. It is widely used in industries such as metallurgy and building materials, improving the separation accuracy and production efficiency of materials.

Working principle

The high-frequency screen is powered by a high-frequency vibration motor, which transmits vibration energy to the screen mesh. After the materials fall onto the screen surface, the high-frequency and low-amplitude vibration will break the adhesion force between the particles, making the materials loose and separating them by size and density. Fine particles pass through the screen holes and become the screen bottom product, while coarse particles are pushed towards the end of the screen by the vibration thrust, forming the screen top product. Some equipment is also equipped with water spraying or inclined screen surfaces to assist in improving the dewatering and decaking effects.

Product features

1. High screening efficiency: High-frequency vibration quickly disperses the materials, and fine particles are efficiently screened. It far exceeds that of ordinary vibrating screens.
2. Precise separation accuracy: Stable vibration precisely controls the material stratification, ensuring the concentration of product particle size.
3. Strong resistance to clogged holes: The screen mesh vibrates at a high frequency, avoiding fine particles from getting stuck in the holes, reducing downtime for cleaning.
4. Flexible structure: Compact in size and easy to install, it can be adjusted according to needs or equipped with auxiliary devices.
5. Energy-saving operation: Direct power transmission, low noise, small impact, and low unit energy consumption.

Technical Parameter

Model No.	Effective sieve diameter(mm)	Powder (KW)	Vibration force	Rotary speed (r/min)
EGPS-600	550	0.55	8000N	3000
EGPS-800	760	0.75	10000N	3000
EGPS-1000	930	1.1	15000N	3000
EGPS-1200	1130	1.5	20000N	3000
Machine can be customized based on your need

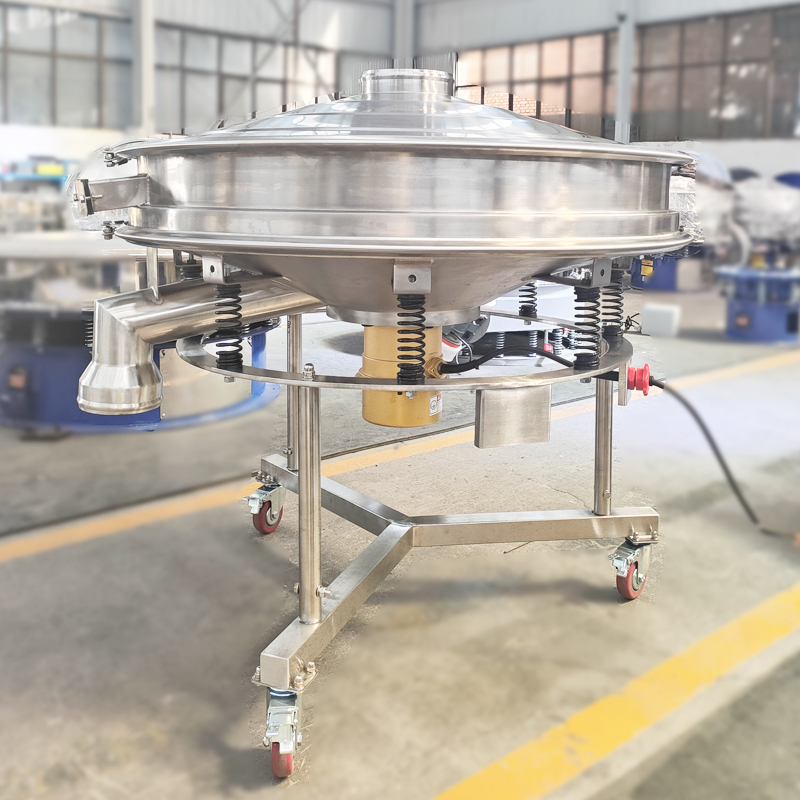

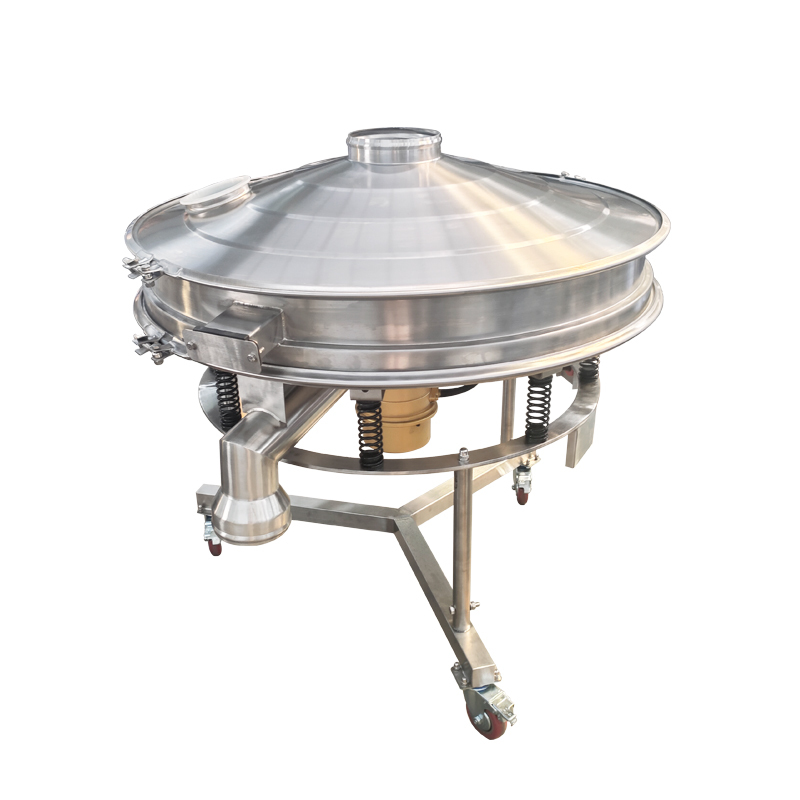

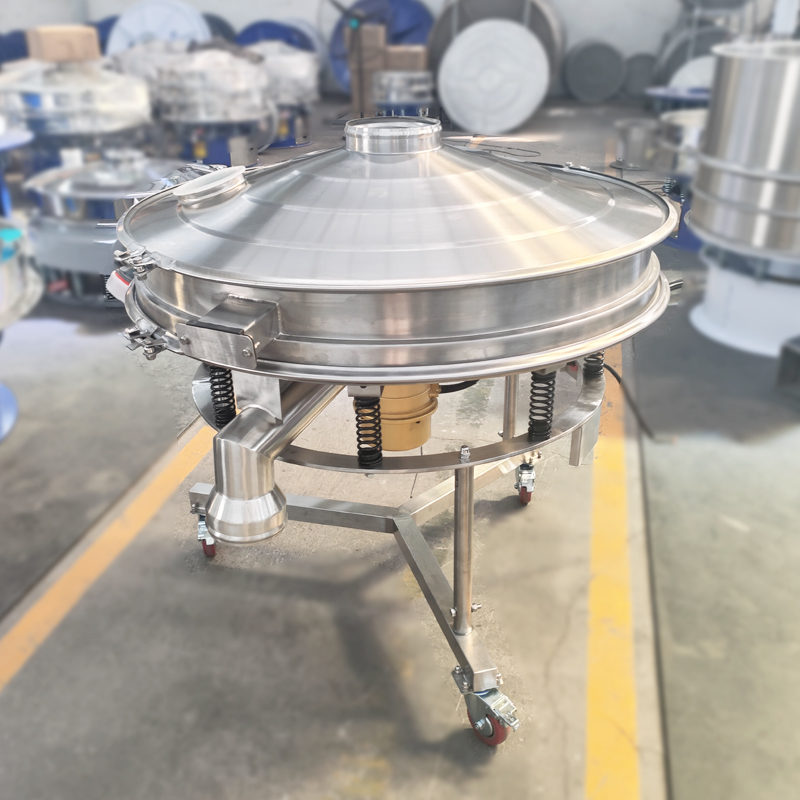

Product display

Application

The 450 liquid filter is suitable for filtration and solid-liquid separation of a variety of materials, including but not limited to the following types of materials:

1. Suspension: Filter solid particles suspended in liquid, such as ore slurry, ceramic suspension, etc.

2. Sewage treatment: remove solid particles and suspended matter in sewage.

3. Chemicals: Filter various chemicals, such as solvents, dyes, pigments, resins, etc.

4. Food and Beverages: Filter liquids such as juice, alcohol, beverages, cooking oils, etc.

5. Pharmaceutical products: filtering liquid medicine, slurry, preparations, etc.

6. Petroleum and chemical industry: filtering crude oil, liquids in the refining process, chemicals, etc.

Packaging and shipping

About us

Our factory



We have been specializing in the production of Screening and conveying equipment for 13 years. China's vibrating screen industry top three. And we have done matching and OEM for many large companies. Including the world's top vibrating screen manufacturer, Sweco, USA, we have OEM
for his China region. And our products are often exported to Australia, Thailand, Indonesia, New Zealand and other countries.

We welcome customers or dealers to visit our factory and will arrange everything for you.Our factory address: West of the industrial and commercial office of Da Zhaoying Town, Xinxiang City, Henan Province.
